Heavy Duty Industrial Vacuum Cleaners / Jumbo Series

Heavy Duty Industrial Vacuum Cleaners Heavy Duty Industrial Vacuum Cleaners / Jumbo Series

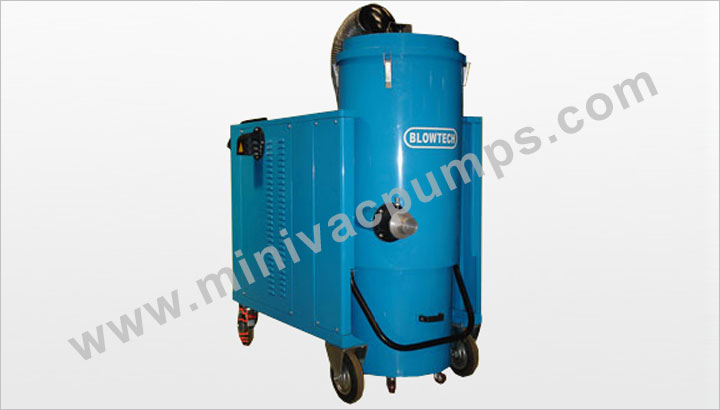

The Jumbo Series of industrial vacuum cleaners are strong, powerful and reliable, therefore they are ideal for continuous and heavy-duty uses. The wide filter area and the great capacity of the container allow the operator to work without any work interruption.

Features:
They are equipped with three phase suction units which don't need any maintenance, thanks to the direct motor/fan coupling so without any transmission. They offer high performances in the recovery of great quantities of heavy materials even at a considerable distance. Safety: the wide star filter surface grants a long operational autonomy; filters are available for hazardous dust, for high temperatures and for very fine dust. The filtershaker, manual or pneumatic, allows maintaining always high the filtration efficiency. Retractable container thanks to a practical release system. The four big casters, two movable with brakes in rear & two fix in front allow an easy maneuverability of the vacuum cleaner. These can be customized for stainless steel and flameproof versions & with different power, size and capacity can be supplied on demand.


JUMBO SERIES

JUMBO-400 CY

JUMBO-800 CY

JUMBO-500 CY

JUMBO-1100 CY

Capacity

m3 / hr

400

800

500

1100

Vacuum

mm H2O

4300

3000

4850

3500

Filtering Surface

Cm2

37

37

42

42

Voltage

Volts / Hz

415 / 50

415 / 50

415 / 50

415 /50

Power

Hp / Kw

10 / 7.5

10 / 7.5

15 / 11

15 / 11

Protection

IP

55

55

55

55

Reservoir capacity

Lts.

100

100

150

150

Machine Inlet

mm

60

60

75

75


  Salient Features
Variable material of construction such as Powder coated Mild steel / Stainless Steel for vacuuming corrosive particles in 304 or SS316.
Built on sturdy trolleys with heavy duty wheels & castors for excellent maneuverability.
Large polyester non-woven filter bags/Pleated filters ensures 100% dust separation efficiency.
Integral Cyclones are provided for fine dust applications in CYmodels.
HEPA filters are available on request.
Unique & easy bin discharging facility

Accessories :
Flexible hose - 5mts.
Suction tube - 0.5mt.
30 Bend pipe
Flat nozzle
Reducer
Electric Chord - 3mts.
Typical Industrial Usage :
Iron & steel  Chemical & Fertilizer
Plastic Pharmaceutical
Coal & Minerals Sugar Industry
Electronics Food
Cosmetics Engg. Workshop
Special accessories:

• Cyclone Separator,
• Special Filters
• Interceptor Trap for liquid & special collection tools
