Blowtech Vacuum Cleaners are designed for industrial
purpose and are used in various fields like
Engineering,
Textile, Food, Pharma, Wood Working, Chemical,
Plastics etc. Powerful continuous suction is created
by
vacuum pumps of cast aluminum construction with
capacities ranging from 1.5 Kw to 5.5 Kw. Hence
these are continuously rated and can be used for 24
hrs/day without interruption. For higher capacities
beyond 5.5Kware available on request.


|
|

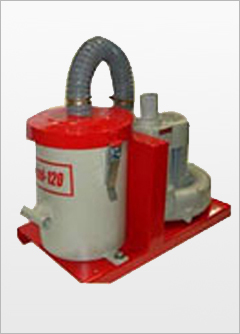

MINI |
| Model |
mini-120 |
mini-170 |
| Voltage |
220V/415V |
220V/415V |
| Power (Kw.) |
0.37 |
0.75 |
| Power
(Hp.) |
0.5 |
1 |
| Vacuum (mmH2O) |
1200 |
1600 |
| Airflow
(m3/hr.) |
120 |
170 |
| Capacity of reservoir |
9 liters |
20 liters |
| Machine
inlet |
40mm |
40mm |
|
|
Salient Features
* Variable material of construction such as
Powder
coated Mild steel / Stainless Steel for vacuuming
corrosive particles in 304 or SS316.
* Built on sturdy trolleys with heavy duty wheels
& castors for excellent maneuverability.
* Large polyester non-woven filter bags/Pleated
filters ensures 100% dust separation efficiency.
* Integral Cyclones are provided for fine dust
applications in CYmodels.
* HEPA filters are available on request.
* Unique & easy bin discharging facility
|

 |
|
|
Accessories :
Flexible hose - 5mts.
Suction tube - 0.5mt.
30 Bend pipe
Flat nozzle
Reducer
Electric Chord - 3mts. |
Typical Industrial Usage :
Iron & steel
Chemical & Fertilizer
Plastic
Pharmaceutical
Coal & Minerals
Sugar Industry
Electronics
Food
Cosmetics
Engg. Workshop |
Special accessories :
* Cyclone Separator,
* Special Filters
* Interceptor Trap for liquid
& special collection tools |
